SMD 5050 Flexible RGBW RGB LED Rope Light Spool Waterproof With UL

    Buy cheap SMD 5050 Flexible RGBW RGB LED Rope Light Spool Waterproof With UL from wholesalers

    Buy cheap SMD 5050 Flexible RGBW RGB LED Rope Light Spool Waterproof With UL from wholesalers
    • Buy cheap SMD 5050 Flexible RGBW RGB LED Rope Light Spool Waterproof With UL from wholesalers
    • Buy cheap SMD 5050 Flexible RGBW RGB LED Rope Light Spool Waterproof With UL from wholesalers
    • Buy cheap SMD 5050 Flexible RGBW RGB LED Rope Light Spool Waterproof With UL from wholesalers

    SMD 5050 Flexible RGBW RGB LED Rope Light Spool Waterproof With UL

    Ask Lasest Price
    Brand Name : TL
    Model Number : TL-SW10CA/B
    Certification : CE,ROSH,UL
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 5000m/day
    Delivery Time : 7-15 workdays
    • Product Details
    • Company Profile

    SMD 5050 Flexible RGBW RGB LED Rope Light Spool Waterproof With UL

    SMD 5050 waterproof Led flexible RGB RGBW neon strip light with UL

    Application

    • Can be Widely used in building outline decoration lighting, KTV decoration lighting, Car decoration lighting,

    urban lighting and others decoration lighting​.


    Product description

    • Product standard length: 5 meters(16.4ft).
    • Product can be fixed in the rugged place (smooth surface and bendable).
    • Beam angle: 150°.
    • Input voltage: 12VDC/24VDC.
    • Excellent lumen maintenance (3oz FPC).
    • 12VDC product: maximum length 5 meters (16.4ft).
    • 24VDC product: maximum length 10 meters (32.8ft).
    • Flexible cutting (the cut mouth sealed by silicone glue).
    • IP68.
    • Stable reliability and anti-UV.​

    LED TypeSMD-5050
    Voltage12V/24V
    ColorRGB/W/R/G/B/Y/A
    Refresh Frequency800 KB
    ApplicationOutdoor decoration light
    IP rankIP20/IP65/IP68/IP67
    IC ModelP943
    Wire99.99% pure gold wire
    Warranty3 Years

    Technical data

    Part Nolight colorlight wavelength (nm)light angle (°)lumens (lm/m)light efficiency (lm/W)voltage (DC/V)power (W/M)

    TL-SW10CA/B

    R61712055.2512.7912/24

    17.28

    G515120136.7921.1112/24
    B46212026.194.04212/24


    ① Tolerance range for optical and electrical data: ±15 %.

    ② All value @ ta=25℃.

    ③ Voltage tolerance range of the power supply: ±5 %.


    Maximum length①

    10/15 meters

    (32.8/49.2ft)

    Ambient temperature range-25 ~ +50 °C
    The temperature of module top65 °C
    Storage temperature range-40 ~ +70 °C
    CertificationCE/UL/ RoHS

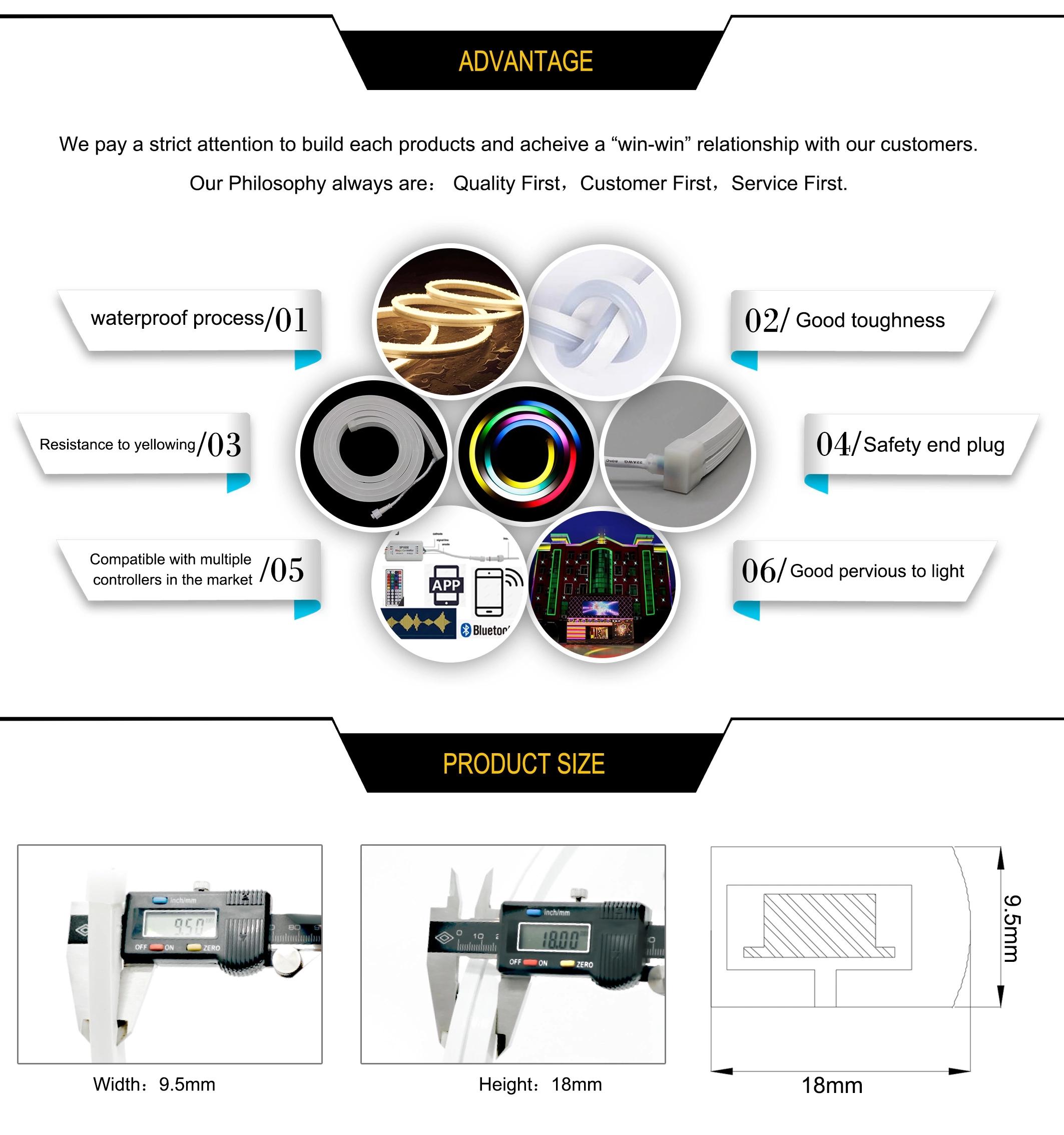

    Product 2D drawing


    • 12VDC/24VDC product interior drawing



    • Product installation schematic diagram


    Product sectional drawing



    Installation




    Benging direction




    Light distribution



    Packaging information



    Product name

    Productd

    dimension

    (L*W*H)

    Carton dimension

    (mm/inch)


    Total length/carton

    Gross
    weight (kg)


    RCC0GX06A/B(2835)

    5m*10mm*17mm (16.4ft*0.39"*0.67")

    390*390*325

    (15.4"*15.4"*12.8")

    60m (195ft)


    15.5
