    Low VF LED Chips Indoor LED Strip Lights Energy Saving LED Linear Lighting Strips

    Ask Lasest Price
    Brand Name : TL
    Model Number : TL-FW28HE-IN128-CV80-10-24V-CCT
    Certification : CE RoHS ETL UL
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30000M per month
    Delivery Time : 2 to 3 weeks
    • Product Details
    • Company Profile

    Low VF LED Chips Indoor LED Strip Lights Energy Saving LED Linear Lighting Strips

    Low VF LED Chips Indoor LED Strip Lights Energy Saving LED Linear Lighting Strips


    SMD2835

    1, High luminous Efficiency 145~150lm/w

    2, 128LEDs per meter, 8LEDs per cutting

    3, 24DCV

    4, Warranty 3 years

    5, Beam angle 120°

    6, 2 layer PCB/1+2OZ copper 10mm width

    7, CRI≥80, lifetime 30000h

    8, CCT/X.Y: 4000k 5000k 5500k 6000k 6500k


    1, Features

    High quality flexible PCB strip with UL ETL RoHS and CE certified

    Use 2835 SMD LED as light source with high brightness and large vier angle

    Environment friendly, no UV, noinfrared, no radiation

    Use high qualily LED

    8pce LED/cutting section


    ItemUnitDataItemUnitData
    LED type/SMD 2835LED quantity/mPCS128
    LED brand/Epistar or equivalent SananLED power dissipation/mW22.5
    Beam angle2θ1/2120Strip power dissipation/mW25
    PCB typetype2 layer PCB/1+2oz copper 10mmLuminous flux±10%lm/m3900
    LengthM3Efficacylm/w160
    Protection degreeIPIP20Operating VoltageVDC24
    Tape/TIA806FGOperating current/mA1.05
    Color/WW/NWTa(ambient temperature)-20℃~60℃
    CRIRa≥80Tc(surface temperature)Max. 67
    CCT2700k27S(2645-2805K) X=0.459 Y=0.412125lm/wHeatsink[c㎡/m]750
    3000k29S(2854-3026K) X=0.44 Y=0.403125lm/wWarranty periodyear3
    4000k41S(3897-4223K) X=0.38 Y=0.38150lm/wLife timeH30000
    5000k50S(4900-5300K) X=0.346 Y=0.359155lm/w

    2, Layout


    3, Outline drawing

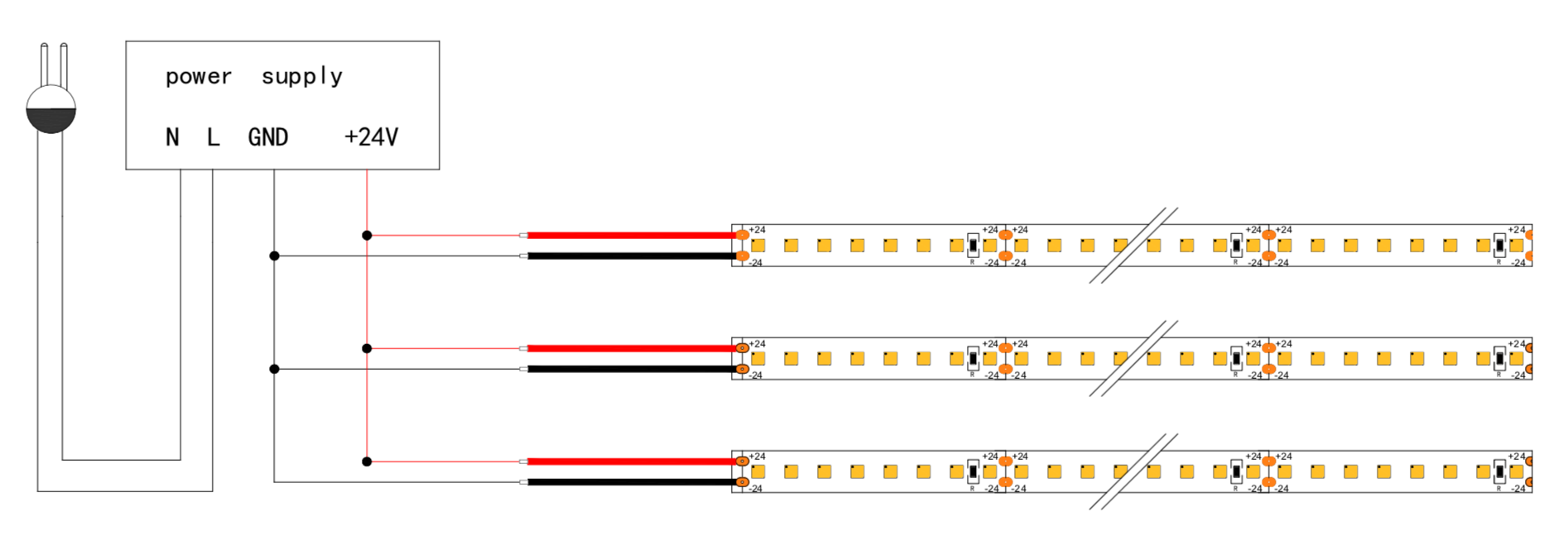

    4, Connection Diagram
