SMD2835 126LEDs Flexible LED Strip Lights 7LEDs Per Cutting 24VDC CRI80 5000K

Shenzhen Traveling Lighthouse Photoelectron Co., Ltd.
Contact Now
    Buy cheap SMD2835 126LEDs Flexible LED Strip Lights 7LEDs Per Cutting 24VDC CRI80 5000K from wholesalers

    Buy cheap SMD2835 126LEDs Flexible LED Strip Lights 7LEDs Per Cutting 24VDC CRI80 5000K from wholesalers
    • Buy cheap SMD2835 126LEDs Flexible LED Strip Lights 7LEDs Per Cutting 24VDC CRI80 5000K from wholesalers

    SMD2835 126LEDs Flexible LED Strip Lights 7LEDs Per Cutting 24VDC CRI80 5000K

    Ask Lasest Price
    Brand Name : TL
    Model Number : TL-FW28HE-IN126-CV80-10-24V-5000K
    Certification : CE RoHS ETL UL
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30000M per month
    Delivery Time : Two to Three weeks
    • Product Details
    • Company Profile

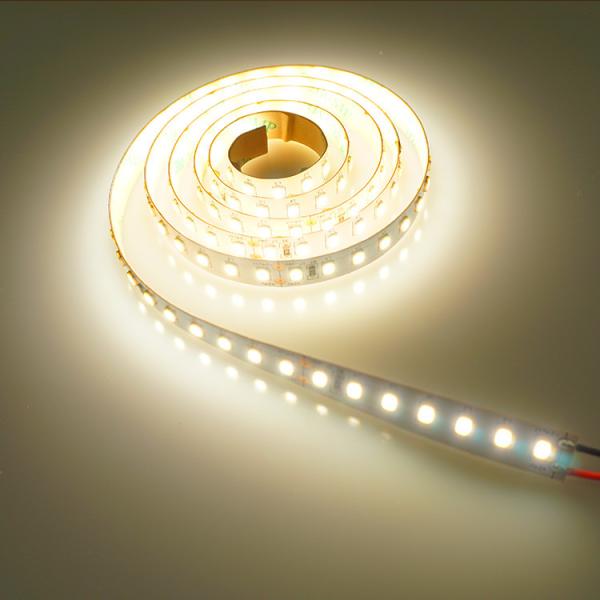

    SMD2835 126LEDs Flexible LED Strip Lights 7LEDs Per Cutting 24VDC CRI80 5000K

    SMD2835 126LEDs 7LEDs Cutting length Indoor LED Strip Lights 24VDC CRI80 150lm 5000K


    SMD2835

    High luminous Efficiency 145~155lm/w

    126LEDs per meter, 7LEDs per cutting 24DCV

    Warranty 5 years Beam angle 120°

    2 layer PCB/1+2OZ copper 10mm width

    CRI≥80, lifetime 50000h

    CCT/X.Y: 4000k 5000k 5500k 6000k


    Rich colour, variety of colour optional, easy to install, also can be used according to the environmental needs waterproof design, waterproof level as high as IP68, use DC12 and 24 v voltage, safe and reliable.High quality FPC. This strip is designed for optimal performance and brightness without degradation for long term use.

    Customized design is warmly welcome!


    1, Features

    High quality flexible PCB strip with UL ETL RoHS and CE certified

    Use 2835 SMD LED as light source with high brightness and large vier angle

    Environment friendly, no UV, noinfrared, no radiation

    Use high qualily LED, 7pce LED/cutting section


    ItemUnitDataItemUnitData
    LED type/2835 chipsLED quantity/mPCS126
    LED brand/Epistar or equivalent SananLED power dissipation/mW23.6
    Beam angle2θ1/2120Strip power dissipation/mW25.6
    PCB typetype2 layer PCB/1+2oz copper 10mmLuminous flux±10%lm/m3520
    LengthM5Efficacylm/w155
    Protection degreeIPIP20Operating VoltageVDC24
    Tape/TIA806FGOperating current/mA1.07
    Color/WW/NW/CWTa(ambient temperature)-20℃~60℃
    CRIRa≥80Tc(surface temperature)Max. 67
    CCT2700k27S(2645-2805K) X=0.459 Y=0.412130lm/wHeatsink[c㎡/m]776
    3000k29S(2854-3026K) X=0.44 Y=0.403130lm/wWarranty periodyear5
    4000k41S(3897-4223K) X=0.38 Y=0.38150lm/wLife timeH50000
    5000k50S(4900-5300K) X=0.346 Y=0.359155lm/w

    2, Layout


    3, Outline drawing

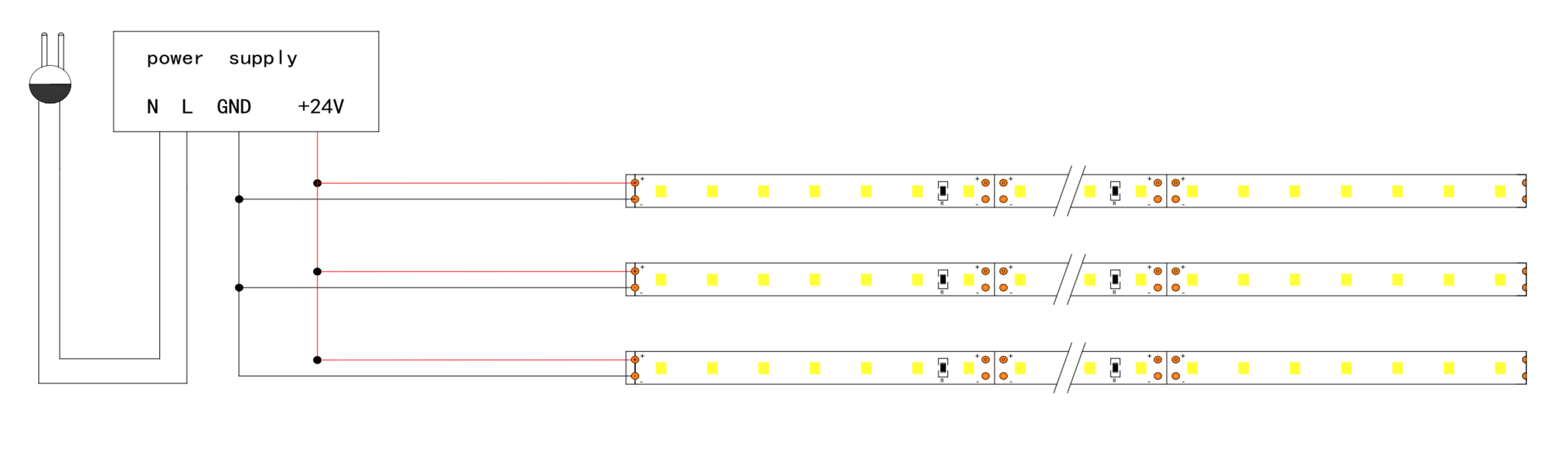

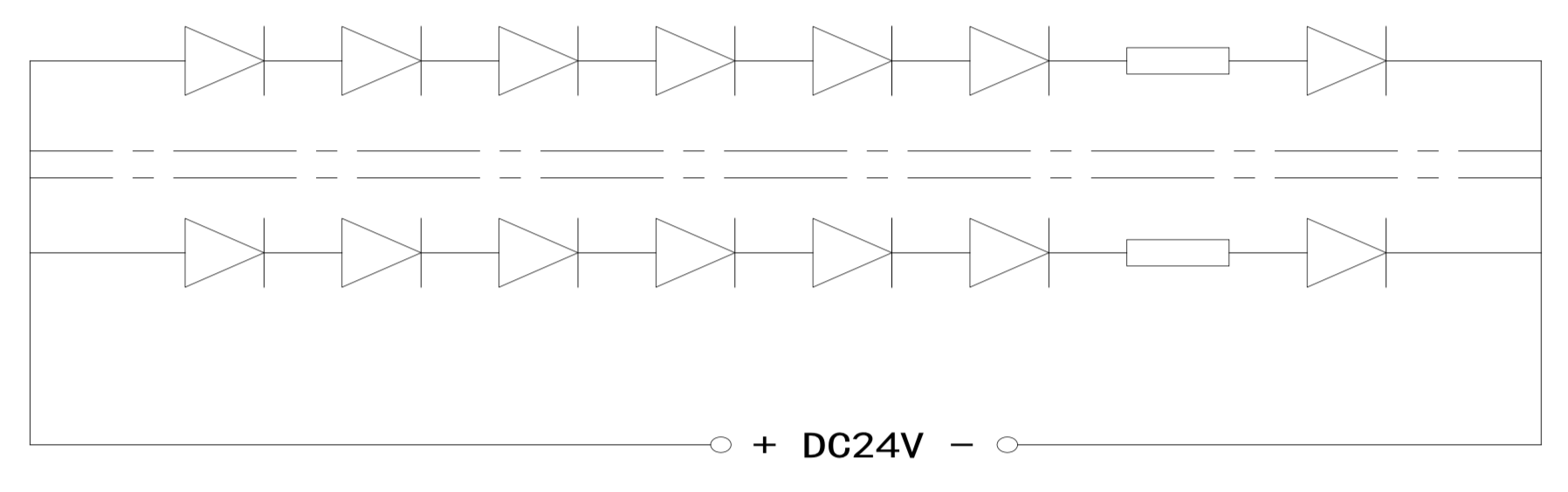

    4, Connection Diagram
