Beam Angle 120° Dimmable Led Strip 84 LEDs Per Meter IP20 RGBW 3 Years Warranty

Shenzhen Traveling Lighthouse Photoelectron Co., Ltd.
Contact Now
    Buy cheap Beam Angle 120° Dimmable Led Strip 84 LEDs Per Meter IP20 RGBW 3 Years Warranty from wholesalers

    Buy cheap Beam Angle 120° Dimmable Led Strip 84 LEDs Per Meter IP20 RGBW 3 Years Warranty from wholesalers
    • Buy cheap Beam Angle 120° Dimmable Led Strip 84 LEDs Per Meter IP20 RGBW 3 Years Warranty from wholesalers

    Beam Angle 120° Dimmable Led Strip 84 LEDs Per Meter IP20 RGBW 3 Years Warranty

    Ask Lasest Price
    Brand Name : TL
    Model Number : TL-FW50-IN84RGBW-CV80-12-24V_Red
    Certification : ETL CE RoHS UL
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30000M per month
    Delivery Time : 2-3 weeks
    • Product Details
    • Company Profile

    Beam Angle 120° Dimmable Led Strip 84 LEDs Per Meter IP20 RGBW 3 Years Warranty


    84LEDs Per Meter IP20 RGBW Indoor Special LED Strips 500 to 600lm Per Red color


    SMD5050 RGBW

    1, High luminous Efficiency 20lm/w

    2, 84LEDs per meter, 6LEDs per cutting

    3, 24DCV

    4, Warranty 3 years

    5, Beam angle 120°

    6, 2 layer PCB/1+2OZ copper 12mm width

    7, CRI≥80, life time 50000h

    8, R: 620-630nm, G: 515-525nm, B: 460-470nm


    1, Features

    High quality flexible PCB strip with ETL UL RoHS and CE certified

    Use 2835 SMD LED as light source with high brightness and large vier angle

    Environment friendly, no UV, noinfrared, no radiation

    Use high qualily LED

    6pce LED/cutting section


    ItemUnitDataItemUnitData
    LED type/SMD 5050LED quantity/mPCS84
    LED brand/Epistar or equivalent SananLED power dissipation/mW8.1
    Beam angle2θ1/2120Strip power dissipation/mW10.53
    PCB typetype2 layer PCB/1+oz copper 12mmLuminous flux±10%lm/m435-525
    LengthM5Efficacylm/w20
    Protection degreeIPIP20Operating VoltageVDC24
    Tape/3M 9495 200MPOperating current/mA0.7
    Color/WW/NW/CWTa(ambient temperature)-20℃~60℃
    CRIRa≥80Tc(surface temperature)Max. 67
    CCTRed

    620-630nm

    -Heatsinkc㎡/m807
    Green515-525nm-Warranty periodyear3
    Blue460-470nm-Life timeH

    50000

    -

    -

    -

    2, Layout

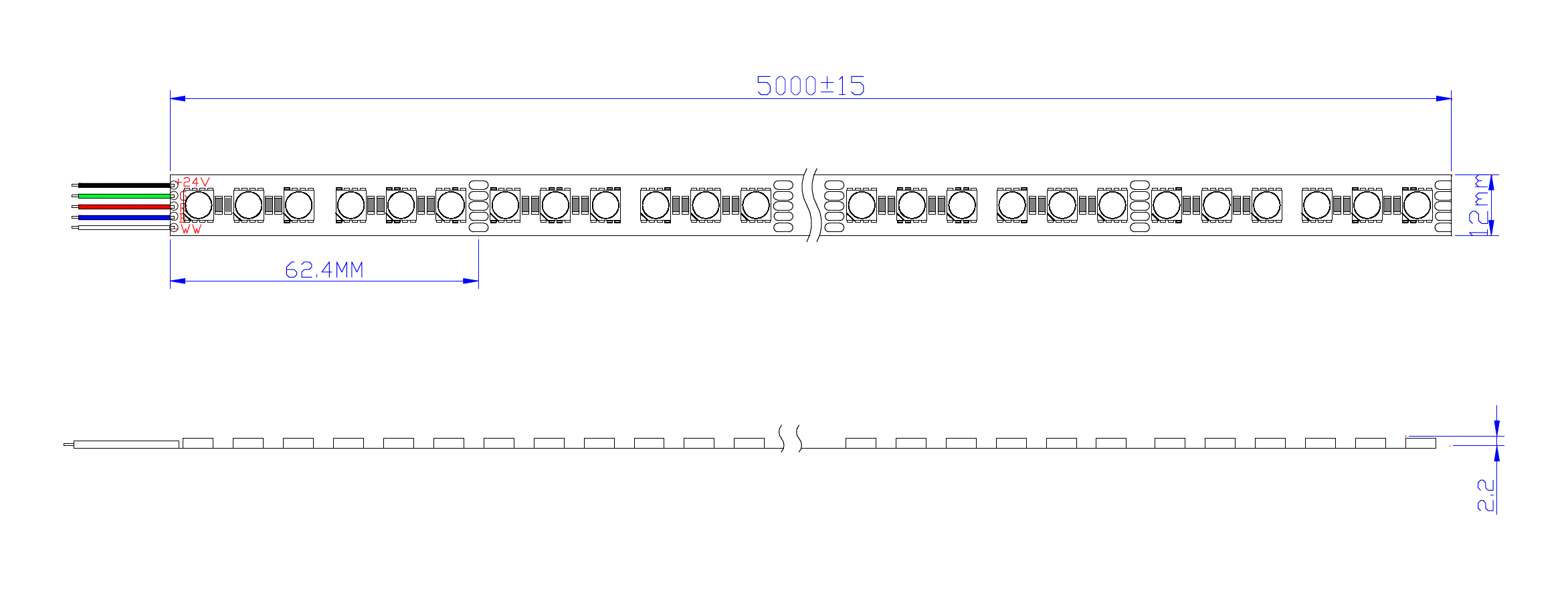

    3, Outline drawing

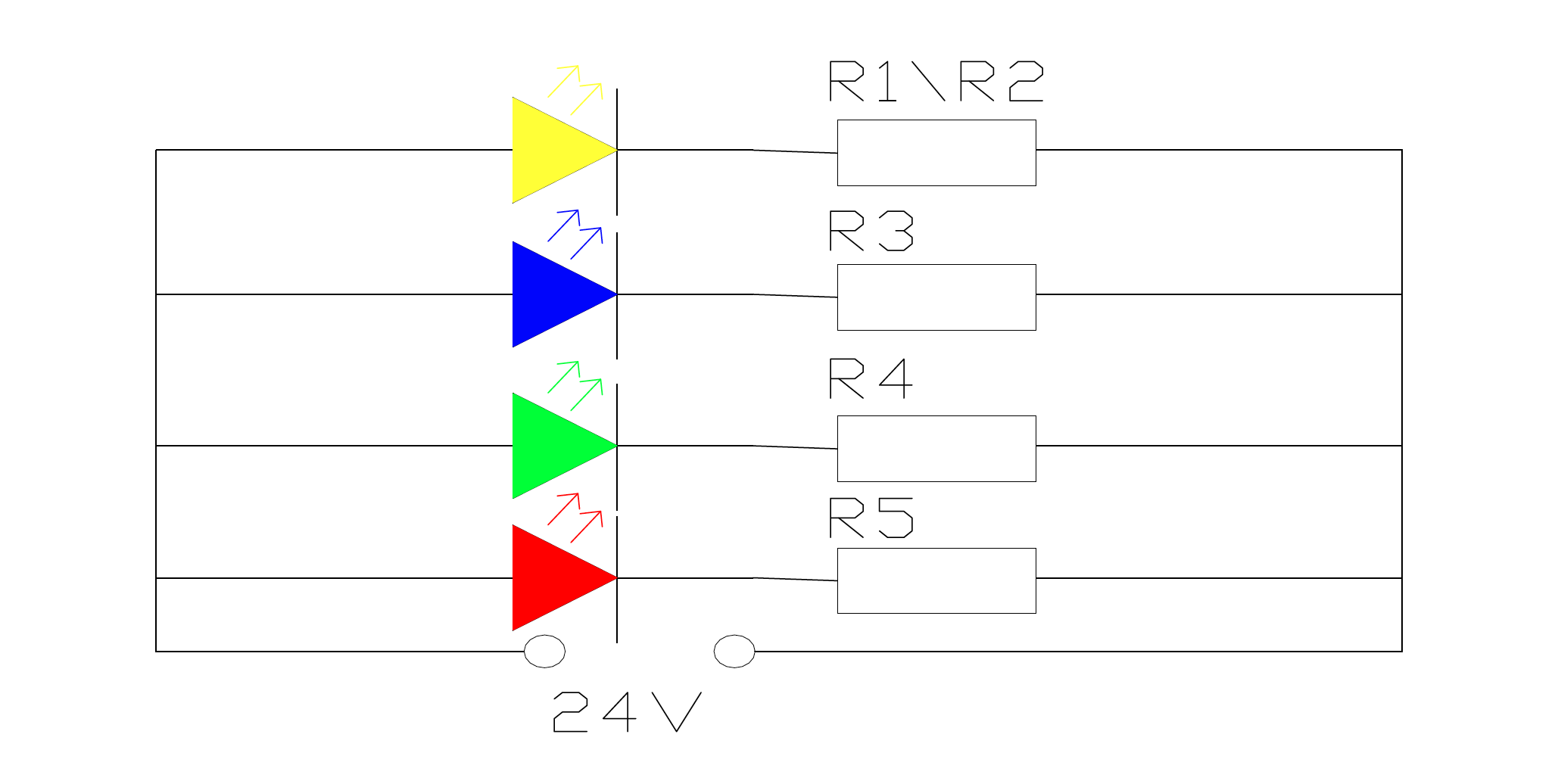

    4, Connection Diagram


    5, Package
